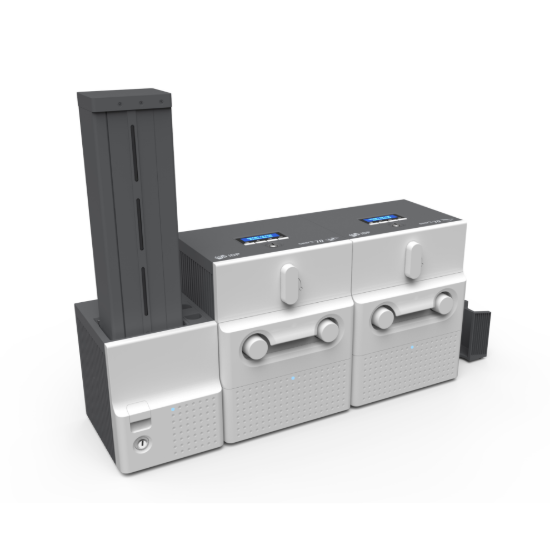

IDP SMART-70 Duplex ID Card Printer with Lamination

The IDP SMART-70 Duplex ID Card Printer with Lamination is an enterprise-grade credential issuance solution engineered for organizations that require high-volume dual-sided card production with enhanced durability, security, and modular scalability. Built on the SMART-70 platform from IDP Americas, this system integrates professional direct-to-card printing with inline lamination technology, making it ideal for government agencies, universities, healthcare systems, corporate campuses, transportation programs, and centralized issuance environments producing employee IDs, student credentials, secure access badges, and membership cards.

The SMART-70 Duplex uses dye-sublimation and resin thermal transfer technology to produce vibrant, edge-to-edge credentials at 300 dpi color resolution, with monochrome printing support up to 1200 dpi. Dual-sided printing allows organizations to maximize card space for barcodes, branding, security features, and additional cardholder information while maintaining crisp image quality and sharp text clarity. IDP’s FINE™ imaging technology enhances color consistency and overall print precision for professional-grade credentials.

Following the printing process, the integrated inline lamination module applies a protective overlay to the card surface to improve resistance against fading, scratching, wear, and tampering. The lamination system supports both clear and holographic laminate options, adding additional visual security and significantly extending credential lifespan. This makes the SMART-70L Duplex particularly well-suited for long-term ID programs and high-use access cards in demanding environments.

One of the SMART-70 platform’s strongest advantages is its fully modular architecture. The system supports scalable expansion through configurable modules for encoding, advanced lamination, high-capacity hopper systems, barcode recognition, image scanning, and additional security enhancements. Organizations can expand and customize the system over time without replacing the core printer platform, making it a strong long-term investment for evolving credential issuance programs.

Designed for continuous operation in production environments, the SMART-70L Duplex includes a high-capacity 500-card input hopper and optional large-capacity output stackers for batch printing workflows. Its rugged metal frame construction provides durability and operational reliability in centralized issuance environments requiring uninterrupted card production.

Printer Options & Configuration Details

• Encoding Options: Magnetic stripe encoding, contact smart card encoding, contactless smart card encoding, DESFire®, iCLASS®, Prox, NFC, barcode scanning, and image scanning modules depending on configuration
• Lamination: Integrated inline single-sided or dual-sided lamination with clear or holographic laminate options for enhanced durability and security
• Modularity & Upgrade Path: Fully modular architecture supporting upgrades for encoding modules, advanced lamination, expanded hopper systems, barcode recognition, image scanning, and enterprise security enhancements
• Connectivity & System Integration: USB and Ethernet connectivity standard with enterprise-ready integration support depending on configuration

The IDP SMART-70 Duplex with Lamination is an ideal solution for organizations requiring high-volume, long-lasting credential production with advanced security, modular scalability, and enterprise-grade reliability.

Also available under manufacturer part numbers: IPFLS, IPFLO
